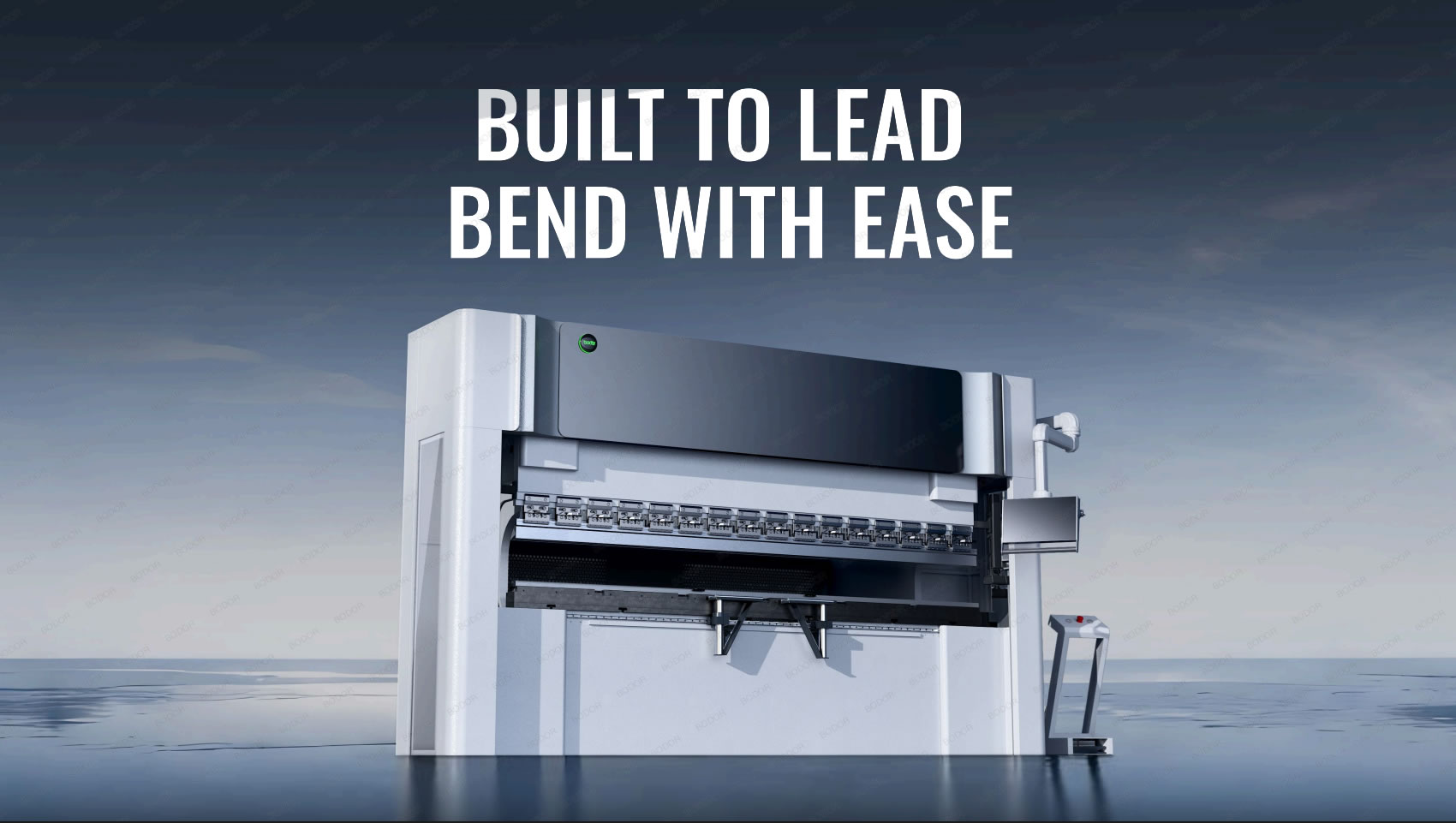

Press brakes · Electro-hydraulic servo press brake
Built to lead. Bend with ease.
An international-standard press brake from 110t to 220t, with automatic deflection compensation and laser angle measurement.
Overview
The Bodor Bend is an electro-hydraulic servo press brake engineered to global standards. Bodor matches every part of the machine to international standards of capability, safety and service, from the frame and tooling to the electrics and software, and supports it through its whole working life.
Built to global standards
After-sales service, safety, hardware and software, all engineered to international standards.
Features
01

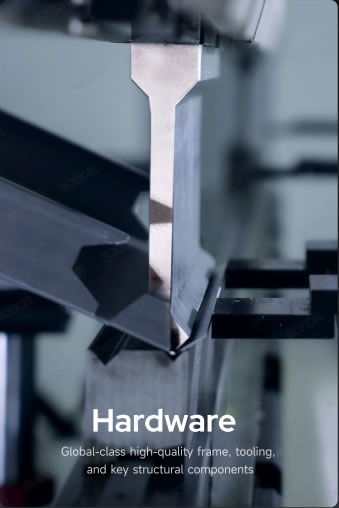

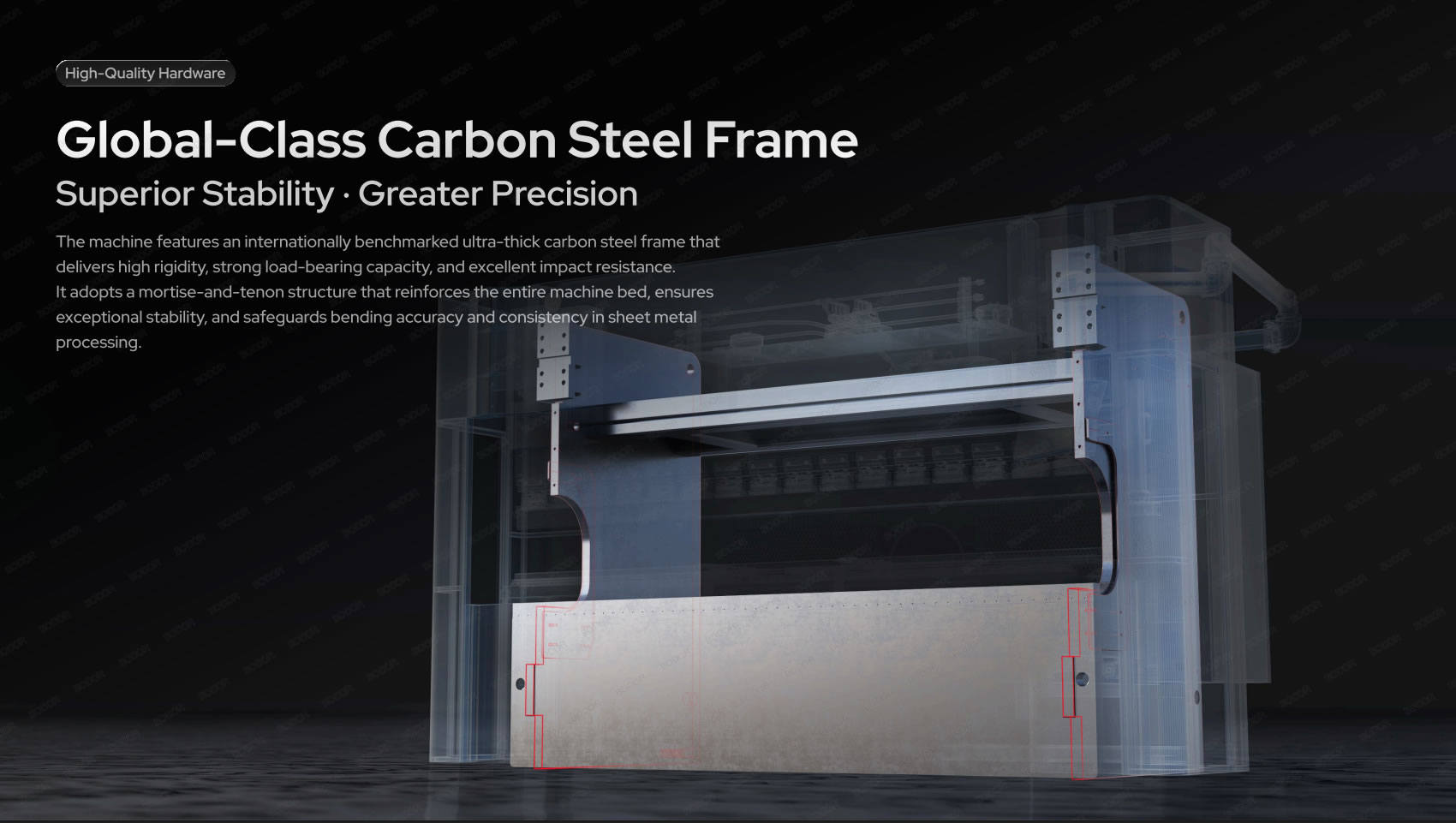

Superior stability and greater precision. An internationally benchmarked, ultra-thick carbon steel frame gives high rigidity, strong load-bearing capacity and excellent impact resistance. A mortise-and-tenon structure reinforces the whole bed to safeguard bending accuracy.
02

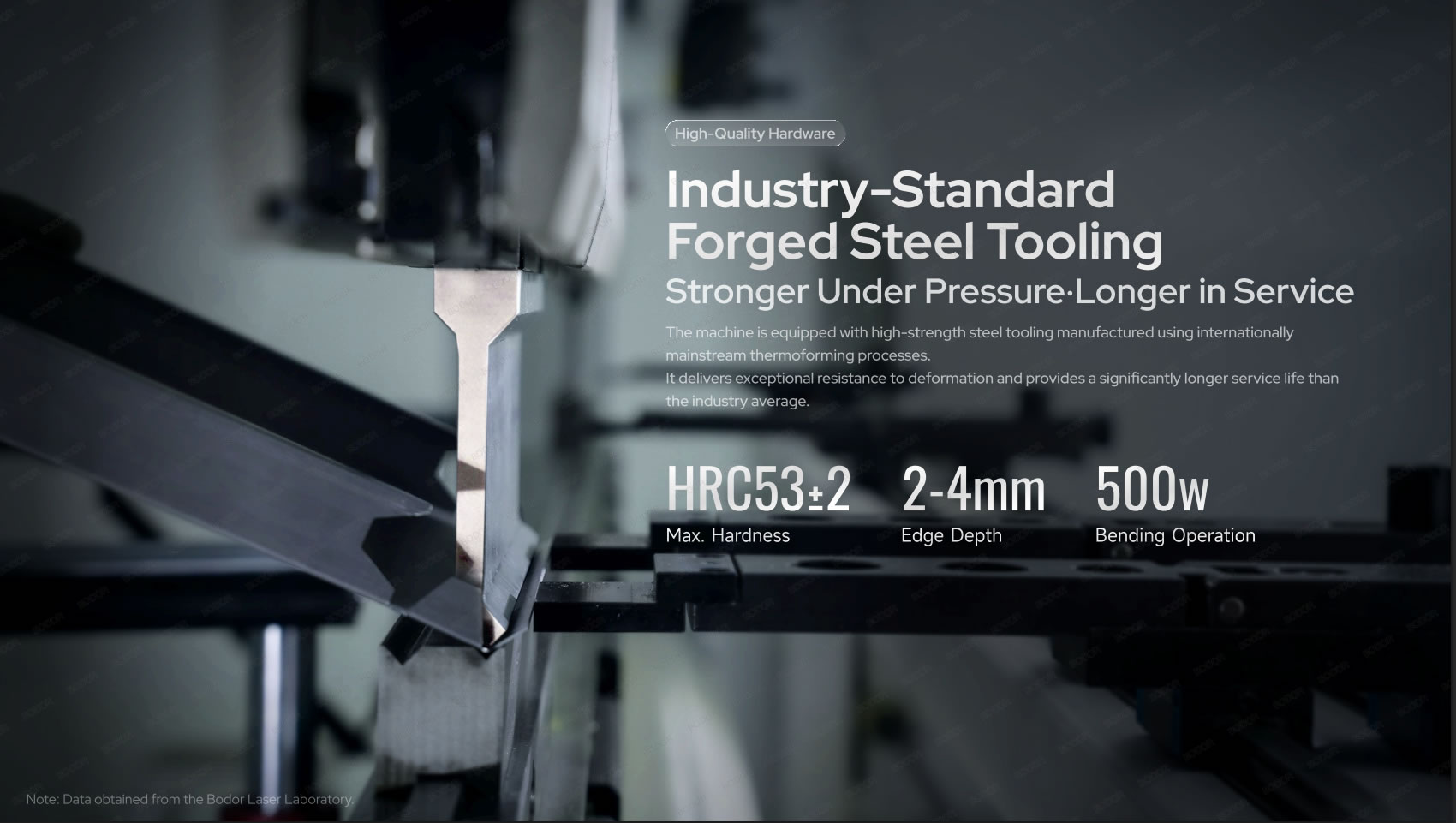

Stronger under pressure and longer in service. High-strength steel tooling made with mainstream international thermoforming processes.
03

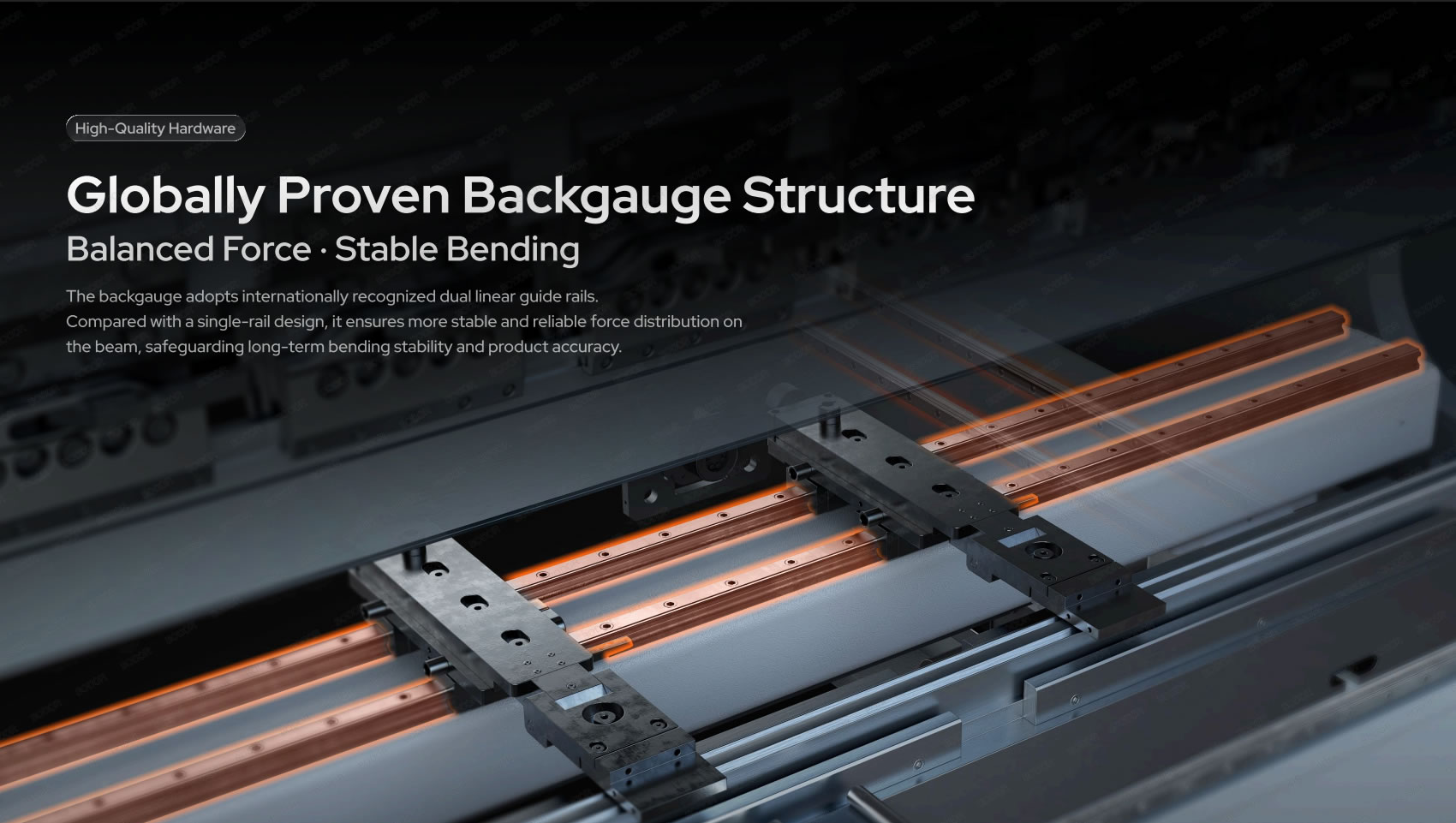

Balanced force and stable bending. Dual linear guide rails spread force more evenly and reliably than single-rail designs.
04

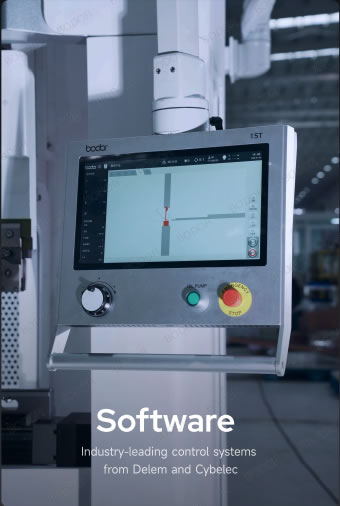

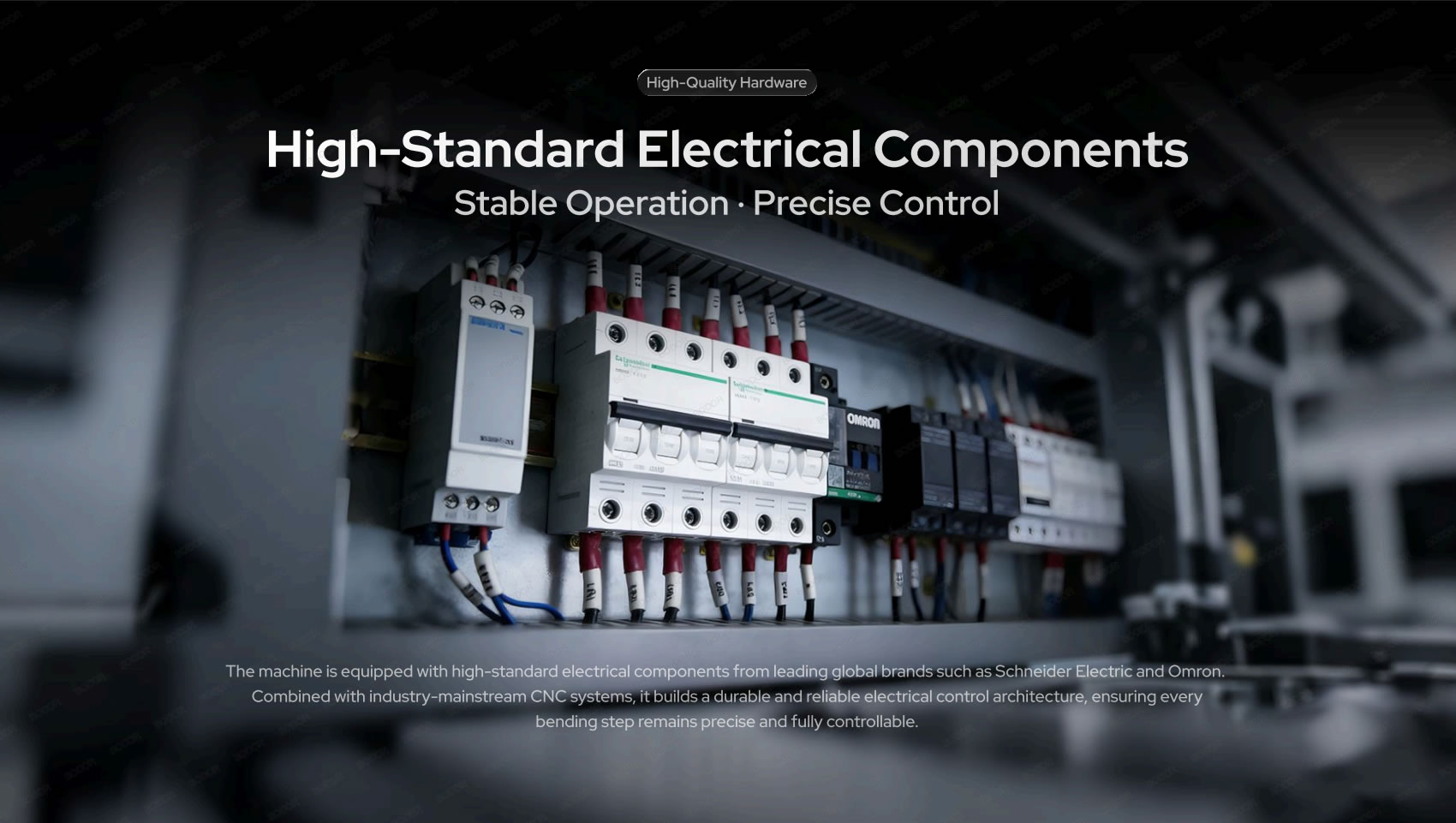

Stable operation and precise control. Components from Schneider Electric and Omron, combined with mainstream CNC systems, give a durable, reliable control architecture.
05

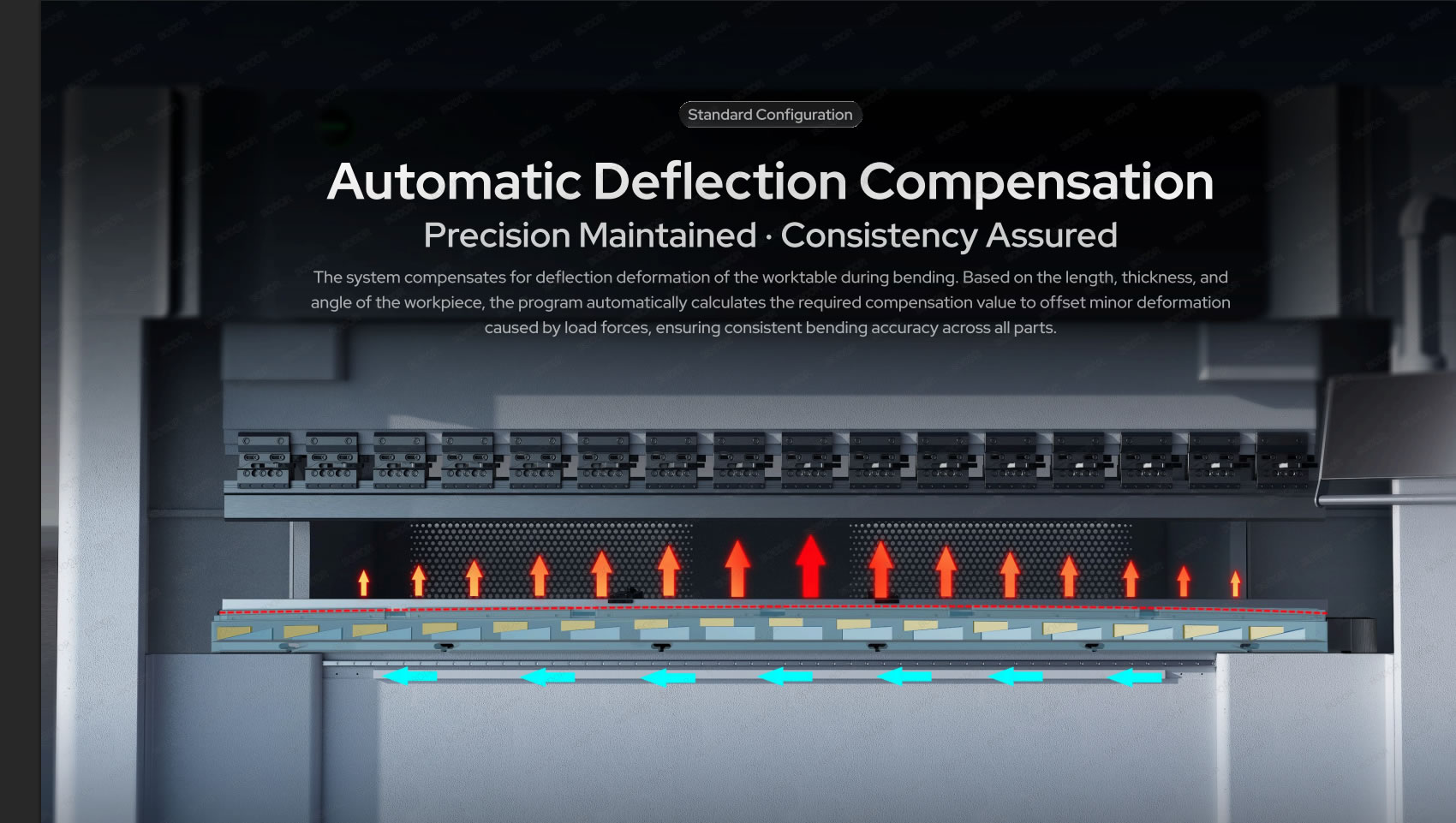

Precision maintained, consistency assured. The program calculates compensation from the length, thickness and angle of the workpiece to offset worktable deflection under load.
06

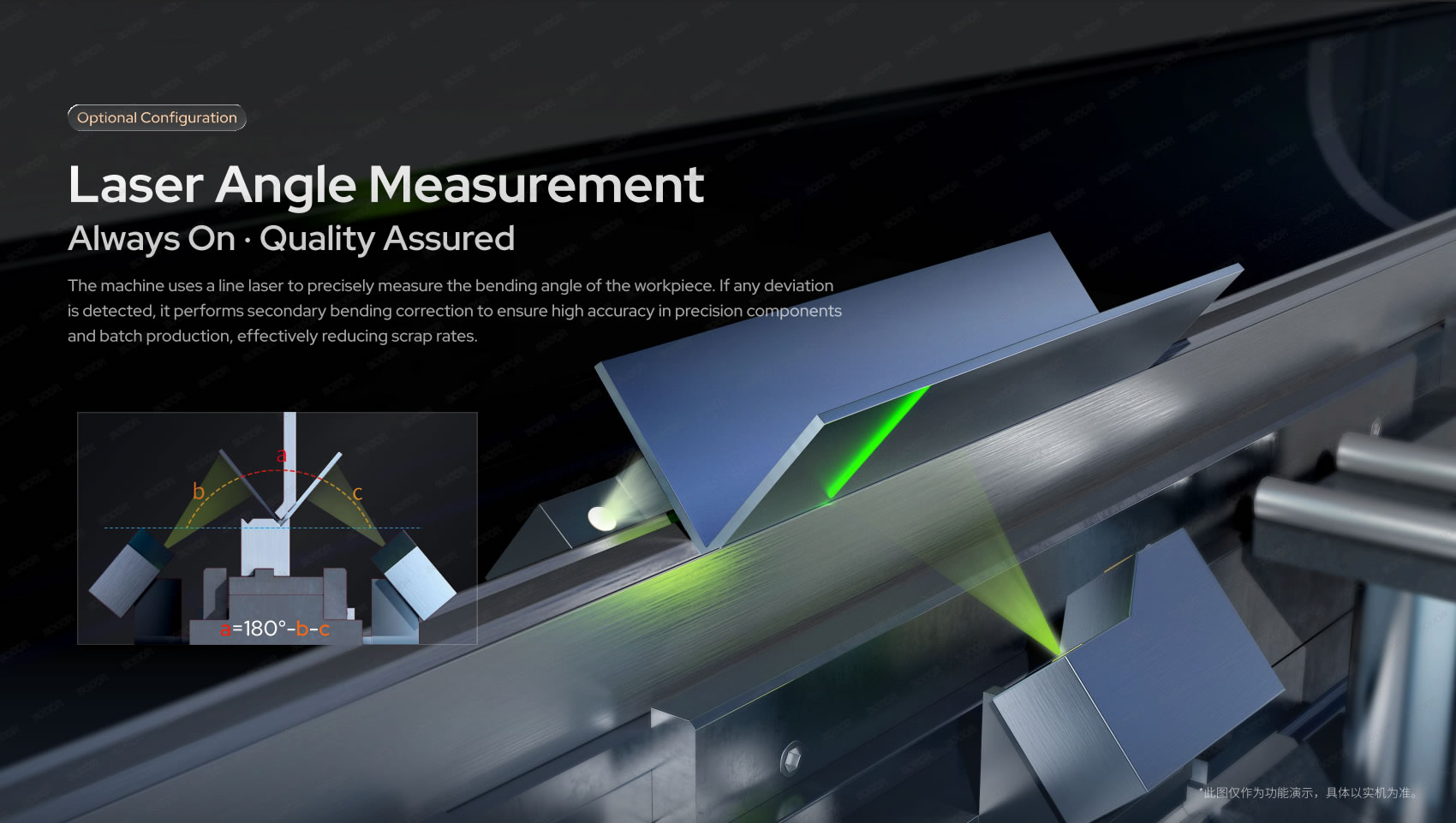

Always on, quality assured. A line laser measures the bend angle and performs a corrective second bend if it detects any deviation, reducing scrap in precision and batch work.
07

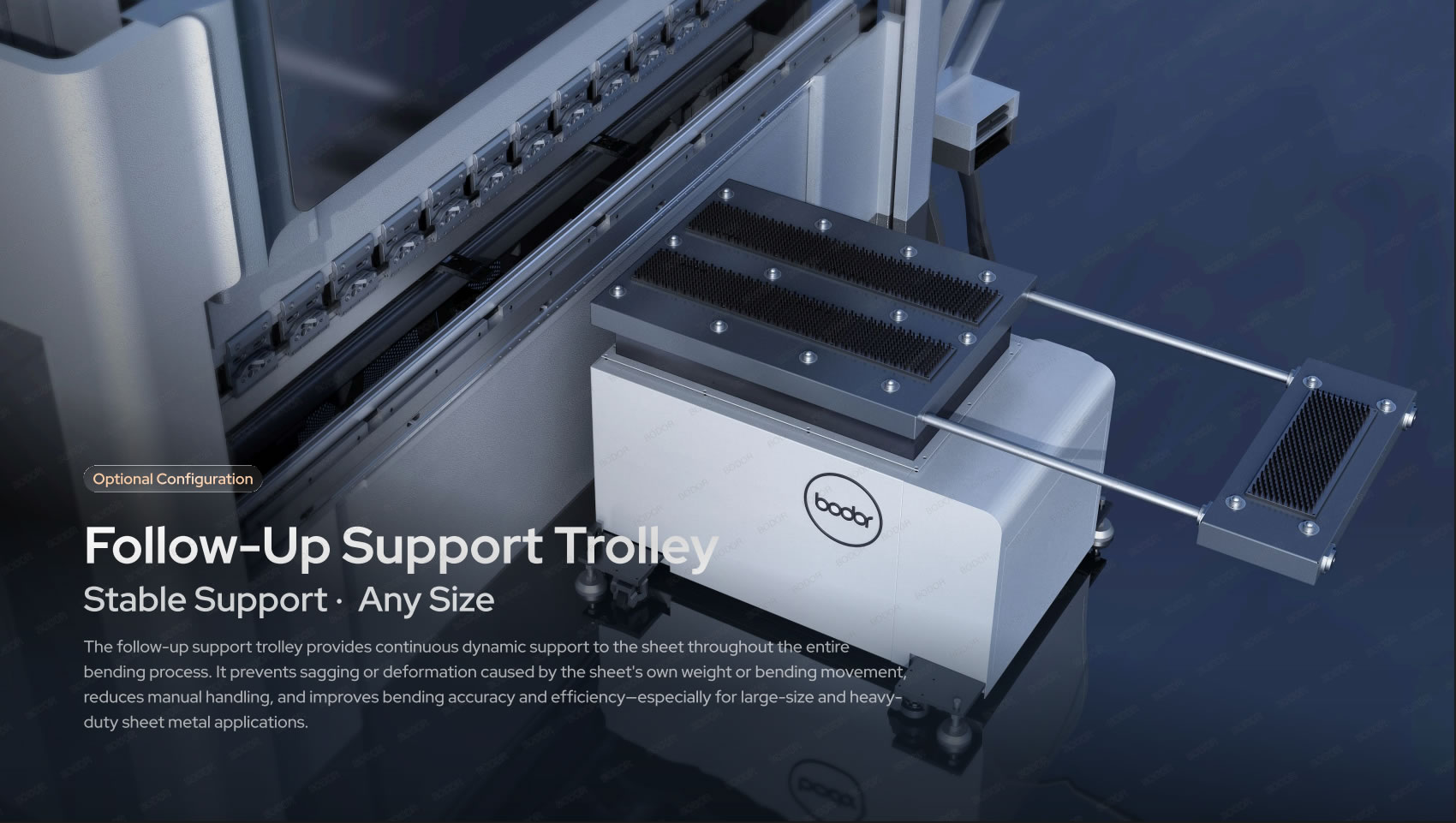

Stable support at any size. Continuous dynamic support stops large, heavy sheets sagging or deforming during the bend, reducing manual handling.
08

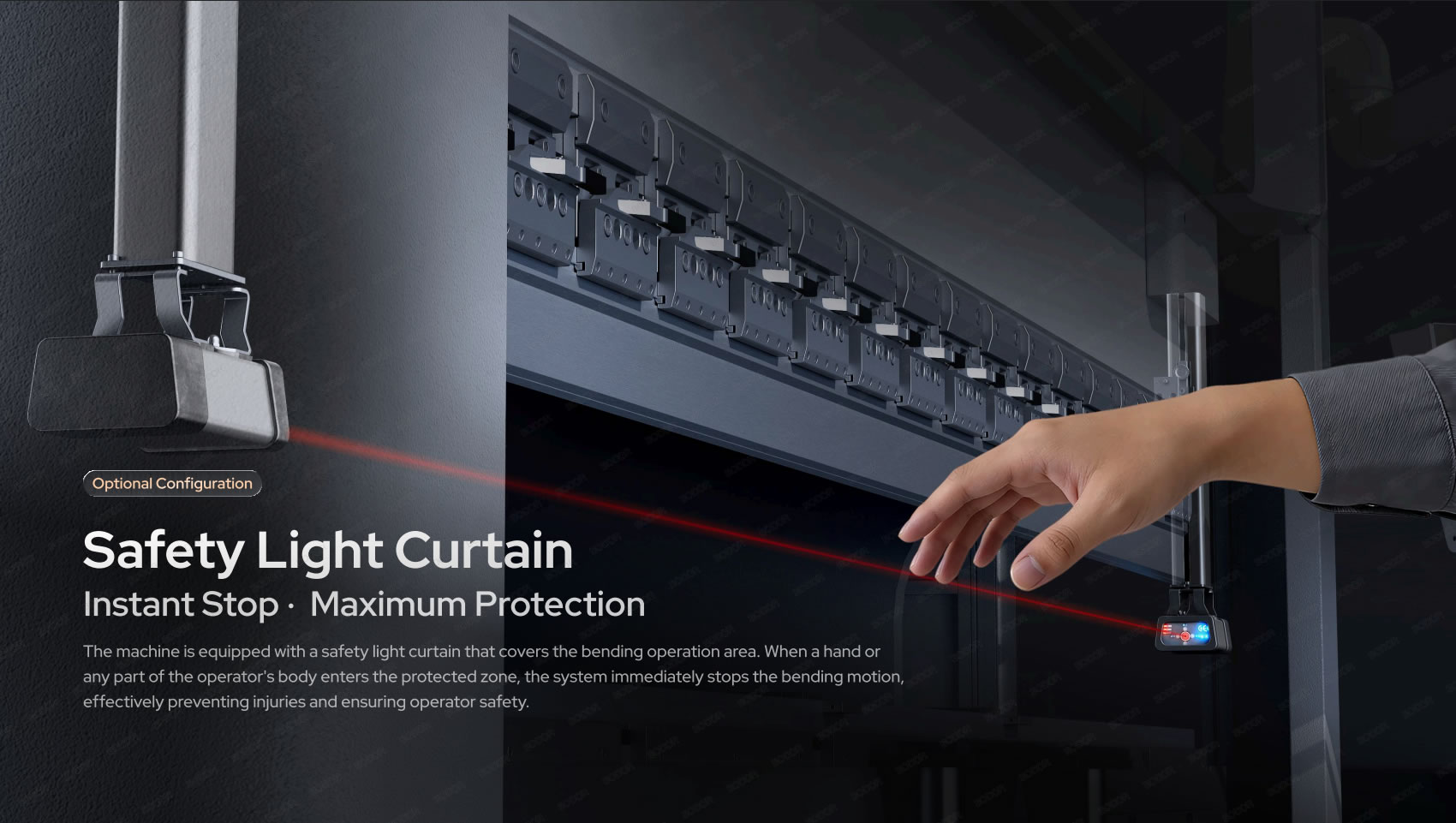

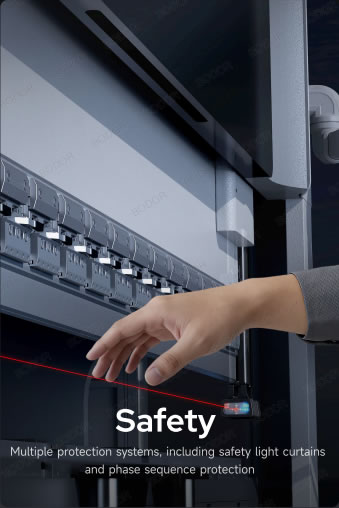

Instant stop, maximum protection. If a hand or any part of the operator's body enters the bending zone, the machine stops immediately.
09
Local service experts worldwide, 24/7 professional online after-sales support and a 1-year warranty covering all models.
10
Widely used in elevator cabins, shipbuilding, wind power and telecommunications.
Specifications
| Parameter | Bend 110/32 | Bend 130/32 | Bend 170/32 | Bend 220/40 |
|---|---|---|---|---|
| Nominal force | 110t | 130t | 170t | 220t |
| Max. bending length | 3200 × 1000mm | 3200 × 1000mm | 3200 × 1000mm | 4000 × 1000mm |
| Max. rapid down speed | 180mm/s | 180mm/s | 180mm/s | 180mm/s |
| Max. X-axis speed | 400mm/s | 400mm/s | 400mm/s | 400mm/s |
| Max. capacity, carbon steel (L × T) | 3200 × 2.5mm | 3200 × 3mm | 3200 × 5mm | 4000 × 5mm |
| Max. capacity, stainless (L × T) | 3200 × 1.5mm | 3200 × 1.8mm | 3200 × 3mm | On request |
