One-stop profile cutting
Process profiles up to 1500mm wide, 600mm high and 28,000mm long. Standard or special-shaped, the U10 handles perforation, bevelling, notching, marking and cutting in one stop.
Sheet laser cutting · Profiles, tubes & sheet
Bodor U10
Multi-material and multi-benefit integration.
Versatile processing of profiles, tubes and metal sheets for diverse steel structures.
Price on application
- Delivery & installation
- Operator training
- UK-based support
- 1500mm
- Max. profile width
- 28m
- Max. processing length
- 6–20kW
- Laser power
- Ø100–1200
- Tube diameter (mm)
Overview
Why choose the U10?
The U10 processes profiles, tubes and metal sheets on one machine, handling diverse steel structures seamlessly. Real-time deviation correction and compatibility with existing plasma cutting foundations and Tekla drawings get you into production quickly.
Comprehensive solution

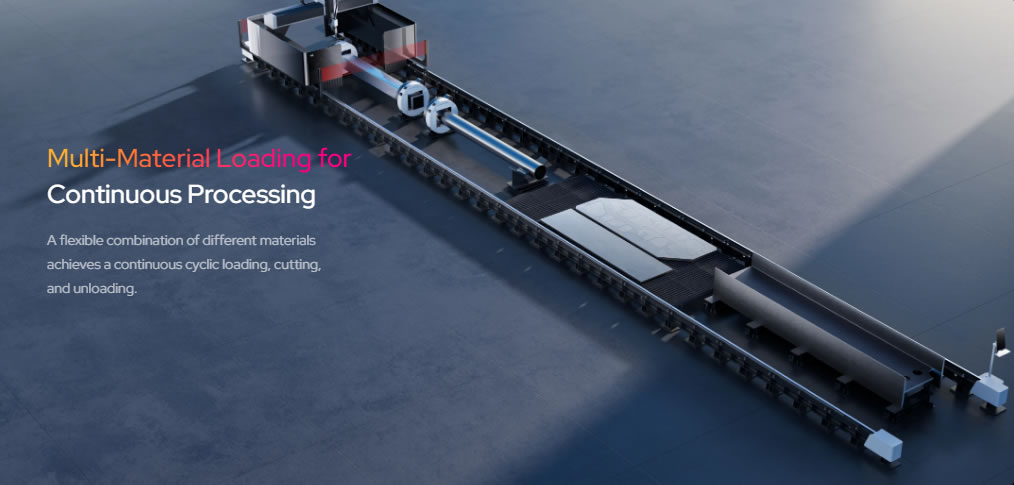

Profiles, tubes and metal sheets on one machine, for seamless handling of diverse steel structures.
Intelligent processing
Real-time deviation correction keeps processing accurate, reducing manual adjustment and the risk of laser head collisions.
Multiple compatibilities

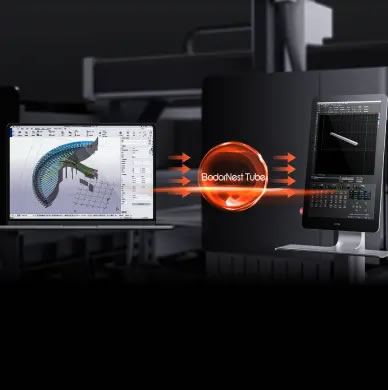

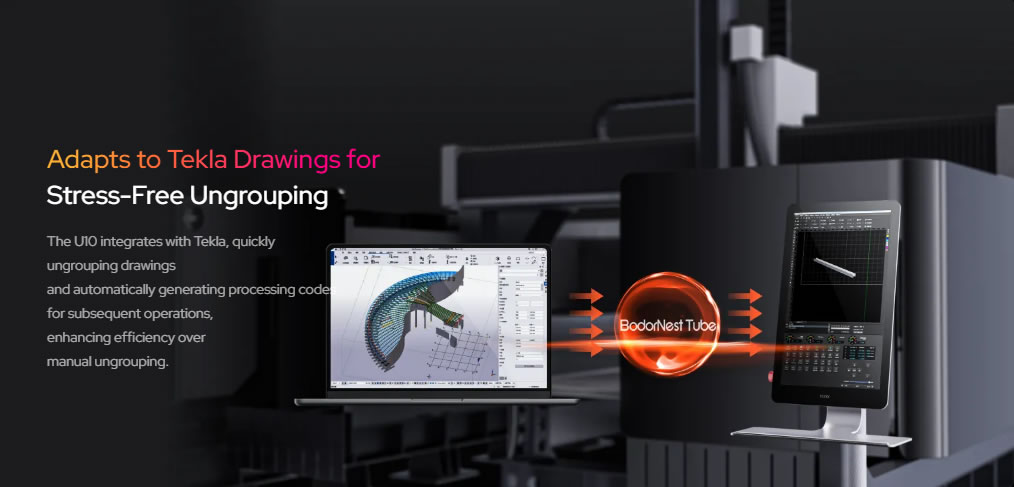

Compatible with existing cutting foundations and Tekla drawings, streamlining workflow and significantly reducing costs.
Features
Engineered for output.
02
Sheet cutting with the blade worktable

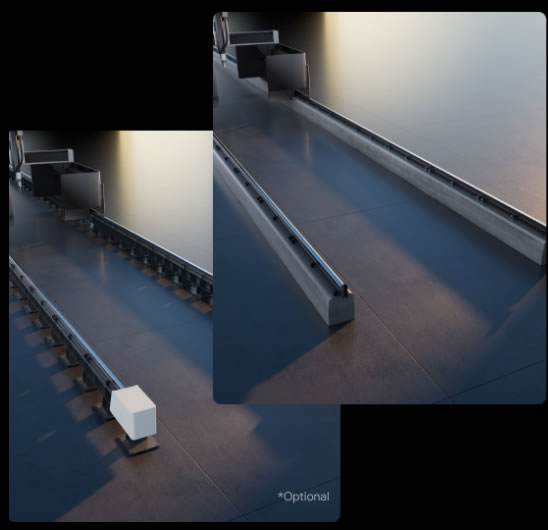

The U10 is compatible with plasma cutting foundations already on the market, so there's no need to replace the foundation for laser equipment. That saves installation time and labour costs. An optional steel foundation makes installation easier and more flexible.
Specifications
Technical data.
| Parameter | U10 |
|---|---|
| Processing range (sheet, straight cutting) | 3200 × 28000mm |

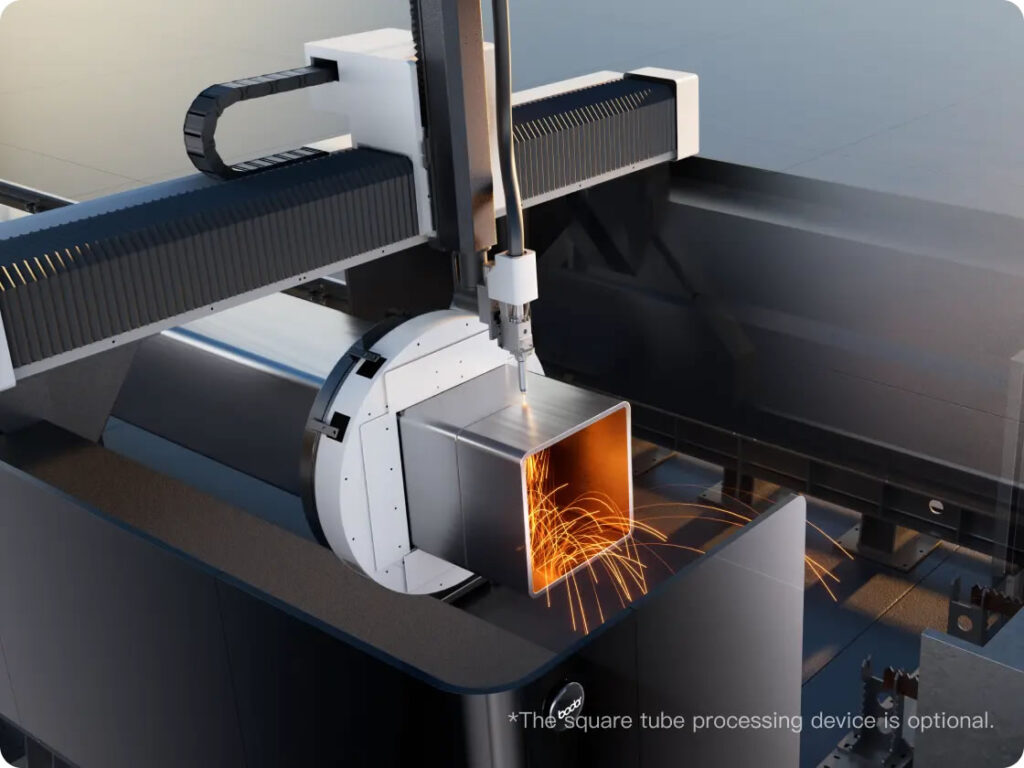

| Processing range (profile / tube) | 200–850mm · Ø100–1200mm · ≤28000mm long |
| Laser power | 6000–20000W |
| Overall dimensions | 33900 × 5030 × 4100mm |
| Capabilities | Bevel cutting · Fly cutting · Intelligent deviation correction |
All parameters are based on testing by Bodor Laser Laboratory and are for reference only.
Gallery
A closer look.
Backed by Bodor UK
- Delivery & installationBy our own engineers
- Hands-on trainingFor your operators
- UK-based supportService & maintenance
- Flexible financeSpread the cost
