Tube laser cutting · High-speed tube line

Bodor T Series

Name: Bodor T Series
Brand: Bodor

Excellent performance for your tube production line.

Up to 12kW of power, 1-second centering and servo-flipping unloading for uninterrupted tube production.

From £98,000

Request a quote Book a demo

Delivery & installation
Operator training
UK-based support

160m/min
Max. loading speed: 175r/min
Max. rotation speed: 0.26s
Rectangular tube centering: 12kW
Max. laser power

Overview

Why choose the T Series?

The T Series brings master-level tube processing to your production line. Single-tube processing is generally 20% faster than other cutting techniques, and up to 12kW of power gets projects done in remarkably short times, on round, rectangular and irregular profiles alike.

Efficiency master
Single-tube processing is generally 20% faster than other cutting techniques.
High-speed cutting
Up to 12kW of power for uninterrupted cutting and remarkably short project times.
High precision
Bodor laser heads deliver exceptional precision across materials of varying thickness.
Versatile applications
Round, rectangular or irregular profiles. Whatever the shape or material, the T Series has you covered.

Features

Engineered for output.

1-second centering, no waiting

Rectangular tubes are centred in 0.26s, against 5.02s for traditional capacitive centering.

Intelligent adaptation for optimal parameters

The T Series selects and matches loading speed, chuck rotation speed and clamping force to your tubes automatically.

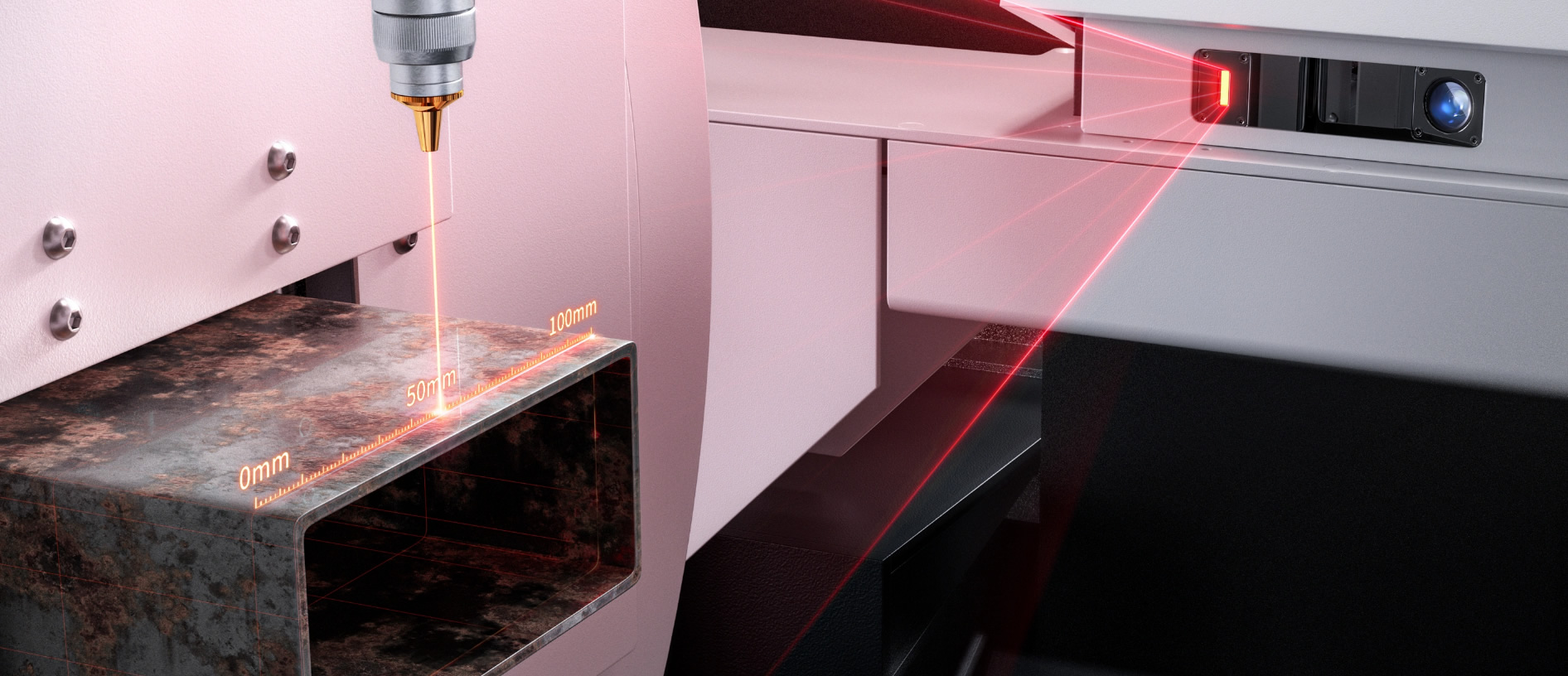

Composite rollers

Follow-up rollers, intelligent loading centering and a bionic U-shaped roller combine to support the tube.

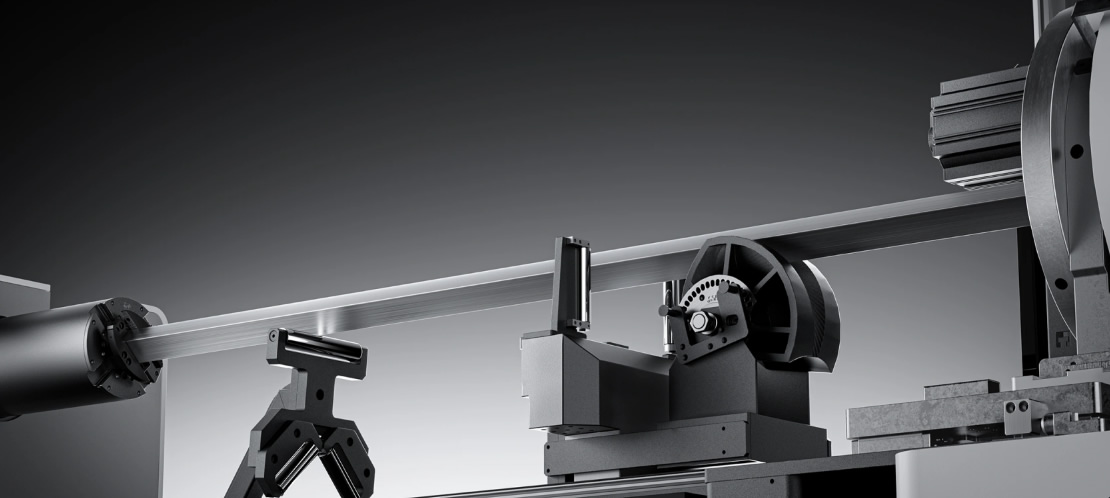

Servo-flipping unloading

A new form of servo-flipping unloading reduces workpiece movement during cutting for better accuracy, while automatic sorting and unloading save time and effort.
